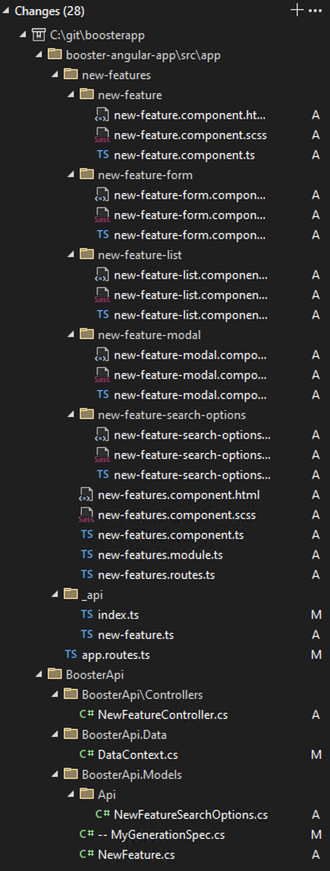

Below is the screen snippet of the git output when scaffolding a new generic feature. This view provides an easy way to visualize what files were added or changed with Scaffold Feature tool.
Tip: If you have a clean git repository (all edit files checked in or stashed) prior to scaffolding a new feature, it will be easy to see this for yourself and also make it easy to undo any changes in case you selected any incorrect configuration options when scaffolding a feature.
As you can see, quite a few files are added and changed when scaffolding a new feature. Here's an explanation:
| Folder | File | Git Action | Description |
|---|---|---|---|
| /LymeTemplateApi.Models | NewFeature.cs | Add | The Entity Framework class file that maps back to the database. |
| /LymeTemplateApi/Controllers | NewFeatureController.cs | Add | The ASP.NET WebApi Controller that provides REST endpoints for CRUD and Search operations. For more info see the Controller Endpoint Breakdown. |
| /LymeTemplateApi.Data | DataContext.cs | Modify | The Entity Framework DataContext class that ties the above mentioned database model to the SQL Server Database |
| /LymeTemplateApi.Models/Api | NewFeatureSearchOptions.cs | Add | The C# class that is used as an input parameter for the API's Search endpoint. |
| /LymeTemplateApi.Models/ | -- MyGenerationSpec.cs | Modify | The TypeLite generation specification file that indicates that a TypeScript class file will be automatically generated in the API project when the Models project is built. This enables a strongly typed new-feature.ts file, making our application's intellisense aware of our new feature. |
| Folder | File | Git Action | Description |
|---|---|---|---|
| / | app.routes.ts | Modify | The root application module route file. When scaffolding a new feature, a line gets added to lazy-load the new feature at the route: http://myapp/app/new-features |
| /new-features | new-features.module.ts | Add | The base module containing declarations to all the generated UI components. |
| /new-features | new-features.routes.ts | Add | The Angular route file that tells the application which components to load based on the URL in the address bar of the browser. |
| /new-features | new-features.component.* | Add | The root Angular component that loads when navigating to the root route in your browser. In this example: http://myapp/new-features. This component displays the search options, paginated/sortable search results, and an Excel export button be default. An 'Add a New Feature' button is also available to add a new record and each search result has and Edit, Delete, and View action button scaffolded by default |
| /new-features/new-feature | new-feature.component.* | Add | An HTML display of a single instance of a NewFeature database record |
| /new-features/new-feature-form | new-feature-form.component.* | Add | The Angular component that contains the form HTML elements used to add or edit an instance of a NewFeature record. |
| /new-features/new-feature-list | new-feature-list.component.* | Add | An Angular component that is responsible for listing a collection of NewFeature objects that typically come from the API Search endpoint. |
| /new-features/new-feature-modal | new-feature-modal.component.* | Add | An Angular Material dialog modal that displays a single instance of a a NewFeature record from the database. |
| /new-features/new-feature-search-options | new-feature-search-options.component.* | Add | The Angular component that contains the Search Form UI that is displayed in the feature's root route. The data model for this component maps back to the NewFeatureSearchOptions.cs class in the API. |
A generic feature comes with the following endpoints by default.
| Route | HTTP Verb | Example | Description |
|---|---|---|---|
| <default> | GET | http://myapp/api/NewFeature | Gets all records from the database |
| GET | http://myapp/api/NewFeature/123 | Gets a single record from the database | |
| POST | http://myapp/api/NewFeature/123 | Saves a single record from the database. Note that this endpoint will both Create (Insert) and Update (Modify) a record depending on the value of the incoming entity's Id key field value. Submit the NewFeature object as the body of the HTTP request. |
|
| DELETE | http://myapp/api/NewFeature/123 | Deletes a record from the database. | |
| Search | POST | http://myapp/api/NewFeature/Search?pageSize=10&pageIndex=0 | Search the NewFeature database table. Submit the NewFeatureSearchOptions object to indicate what fields are to be searched. The pageSize and pageIndex query parameters handle pagination |
| ExportToExcel | POST | http://myapp/api/NewFeature/ExportToExcel | Generates a Microsoft Excel .xlsx file. Submit the NewFeatureSearchOptions object to indicate what fields are to be included. |
| URL | Description |
|---|---|
| http://myapp/new-features | The root route to your newly scaffolded feature. |
| http://myapp/new-features/add | A form to add a new instance of a NewFeature record in the database. This route is navigated to automatically when pressing the "Add New Feature" button on the main view described above. |
| http://myapp/new-features/edit/123 | A form to edit an existing NewFeature record in the database. This route is navigated to automatically when clicking the "Edit" option on a search result. |
